The product
CanonCore turns Google Drive into a Netflix-style media library: visual browsing, playlists, watch progress, public sharing, and a canonical metadata model across TMDB, Google Books, MusicBrainz, and custom providers — without moving or duplicating your files. The name comes from "canon" because every item carries a single canonical metadata shape regardless of source. One canonical item can live in many collections via a Postgres DAG, so the same film can appear in "Sci-Fi", "Watched in 2025", and a chronology — without duplication.
I use this daily for my own movie, audiobook, and reading library. The next chapter is a React Native (Expo) iOS client — the server-shaped DTOs, byte-range media proxy, and OAuth flow were designed not to assume a browser, so the same data layer should serve a mobile client without refactor.
Stack: Next.js · React Native (Expo) · TypeScript · PostgreSQL · Drizzle ORM · Clerk · Google Drive API · Playwright · Storybook
Features in detail
Browsing and organisation

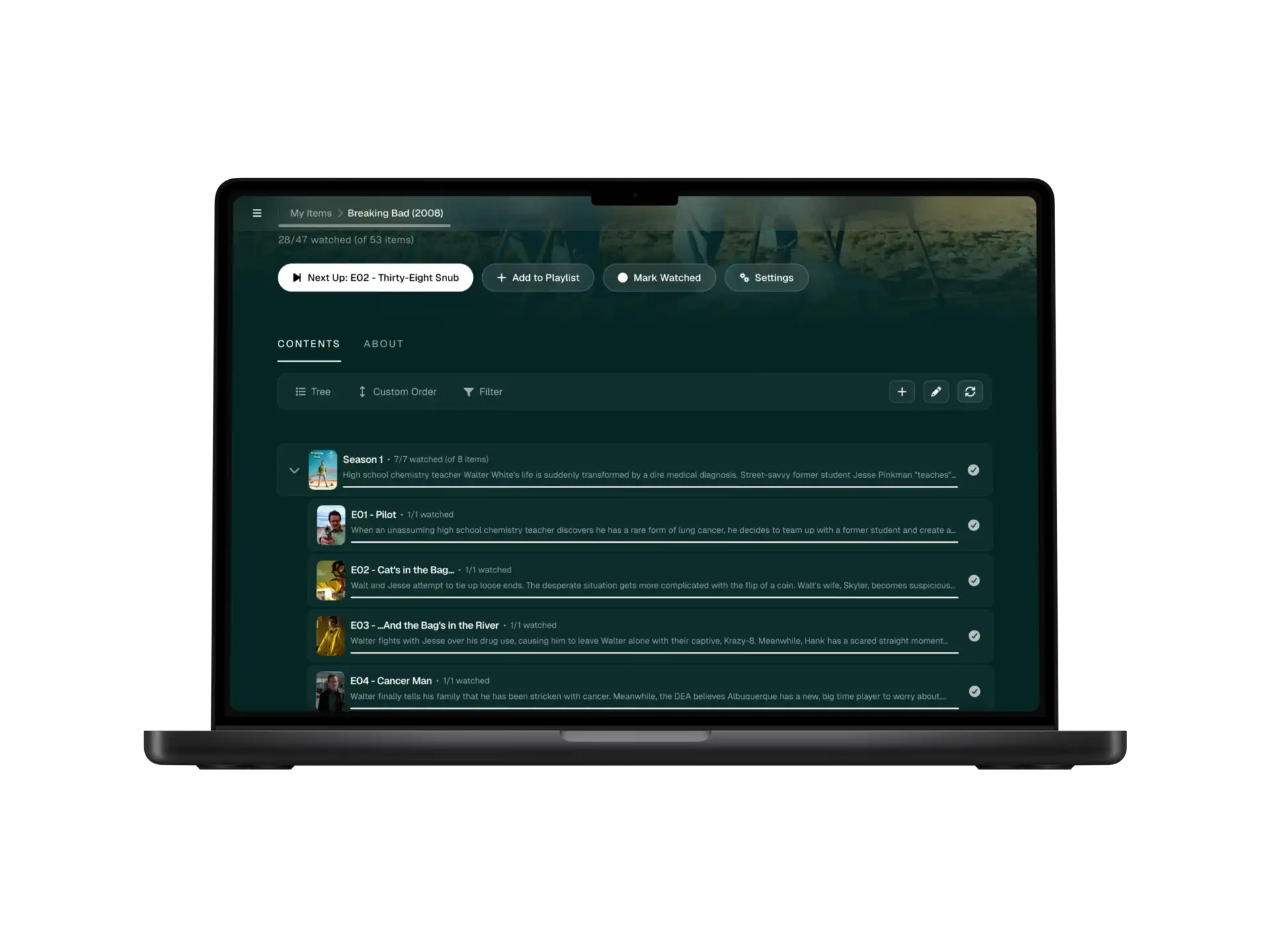

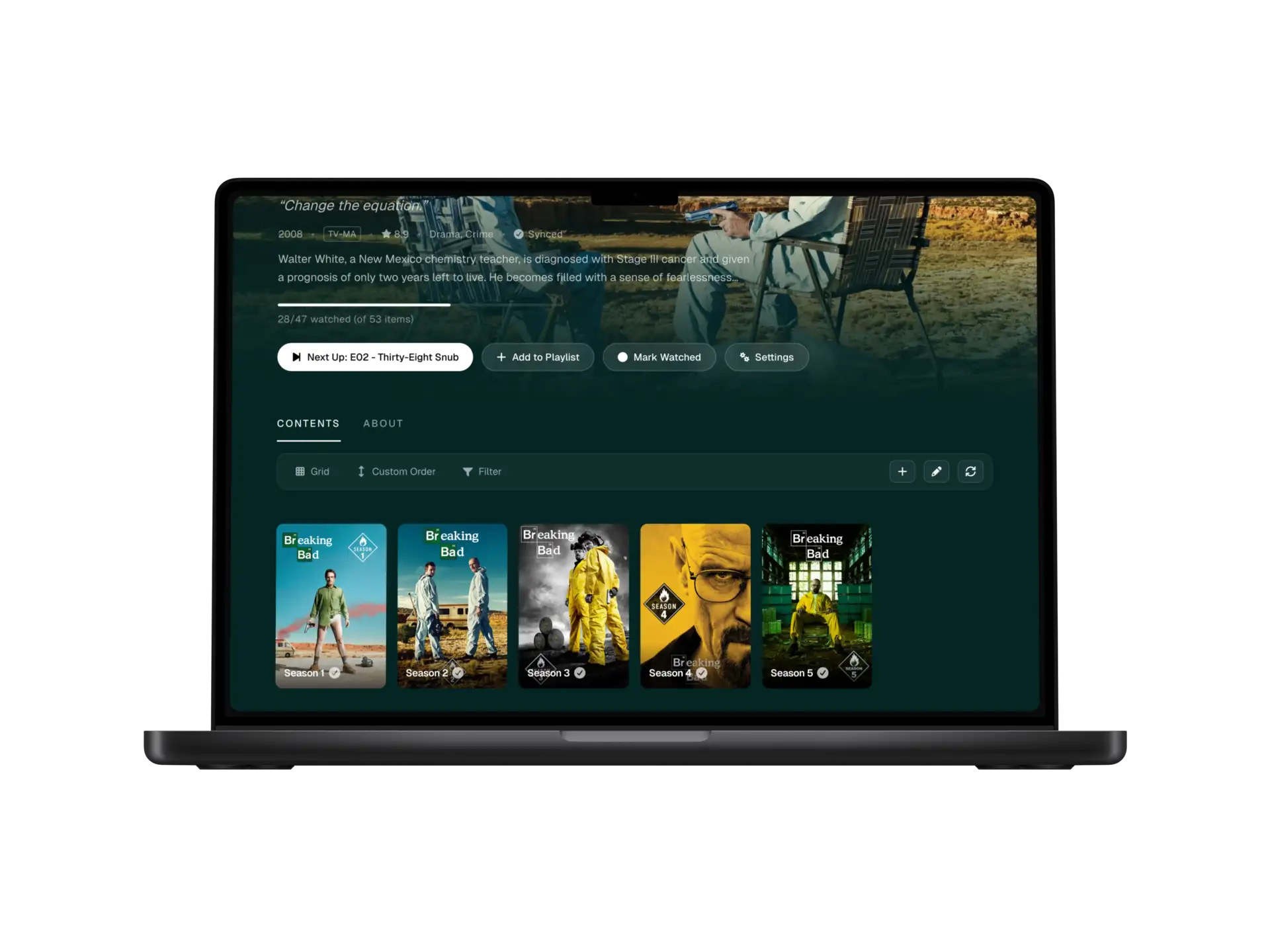

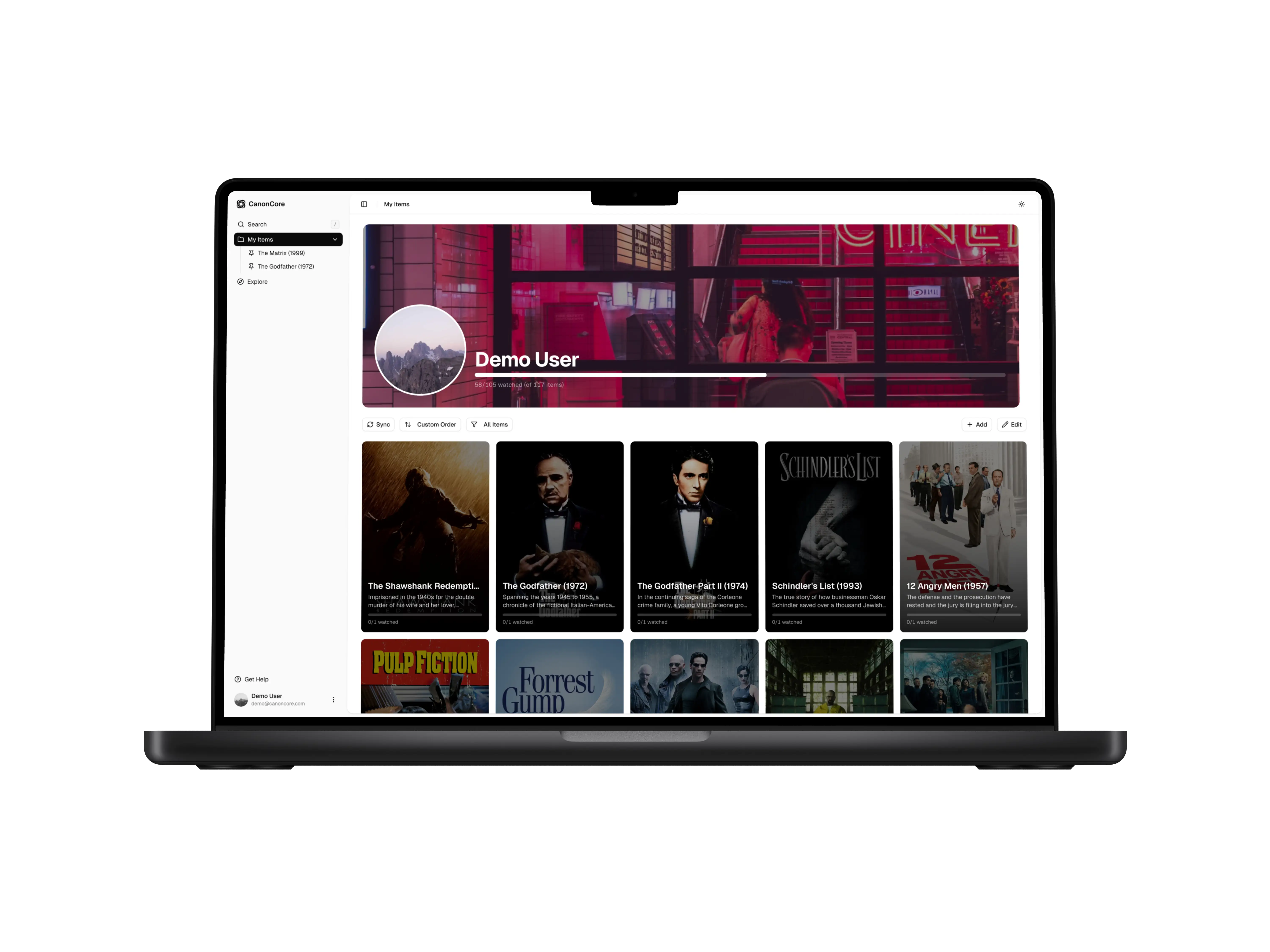

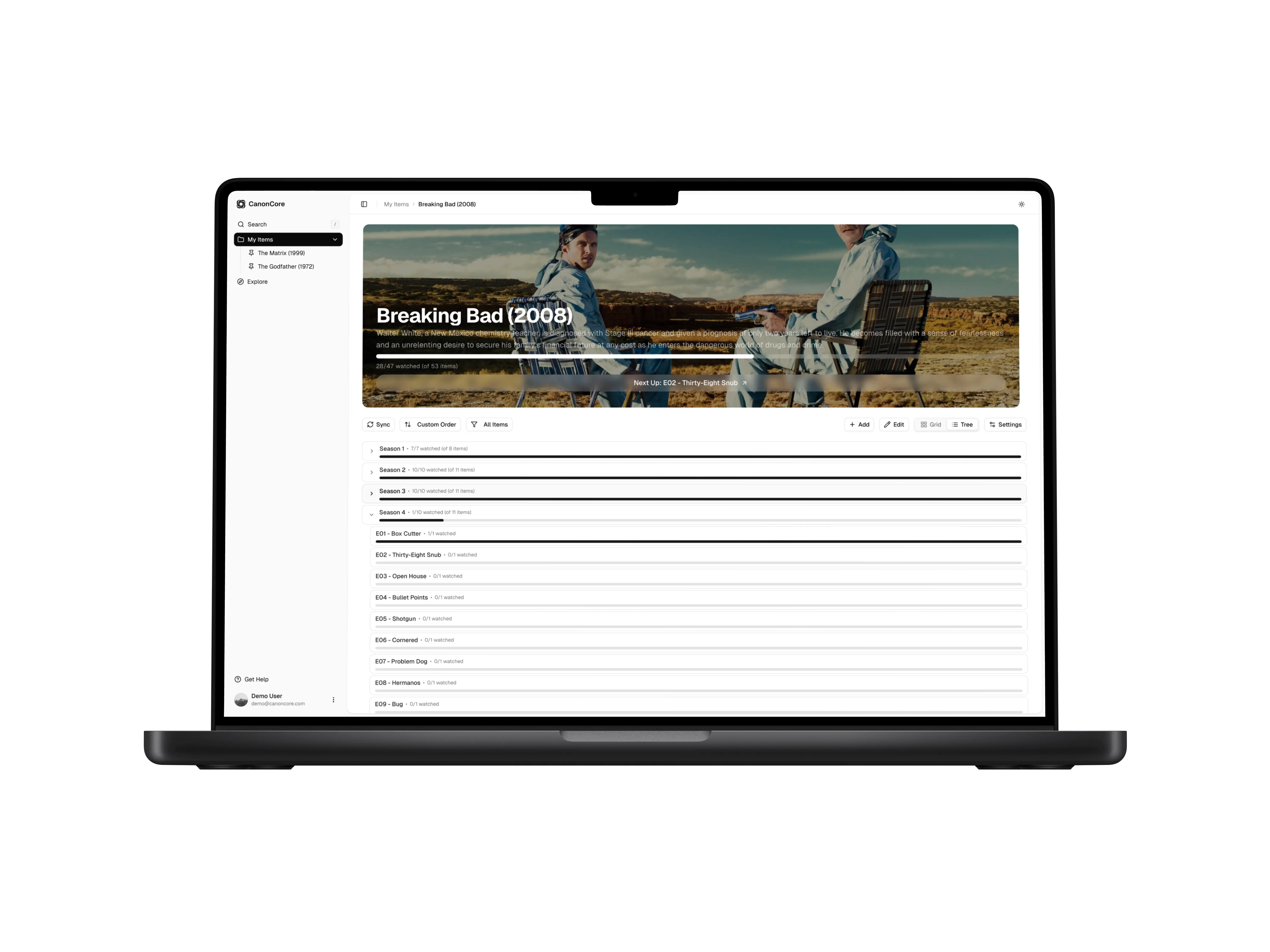

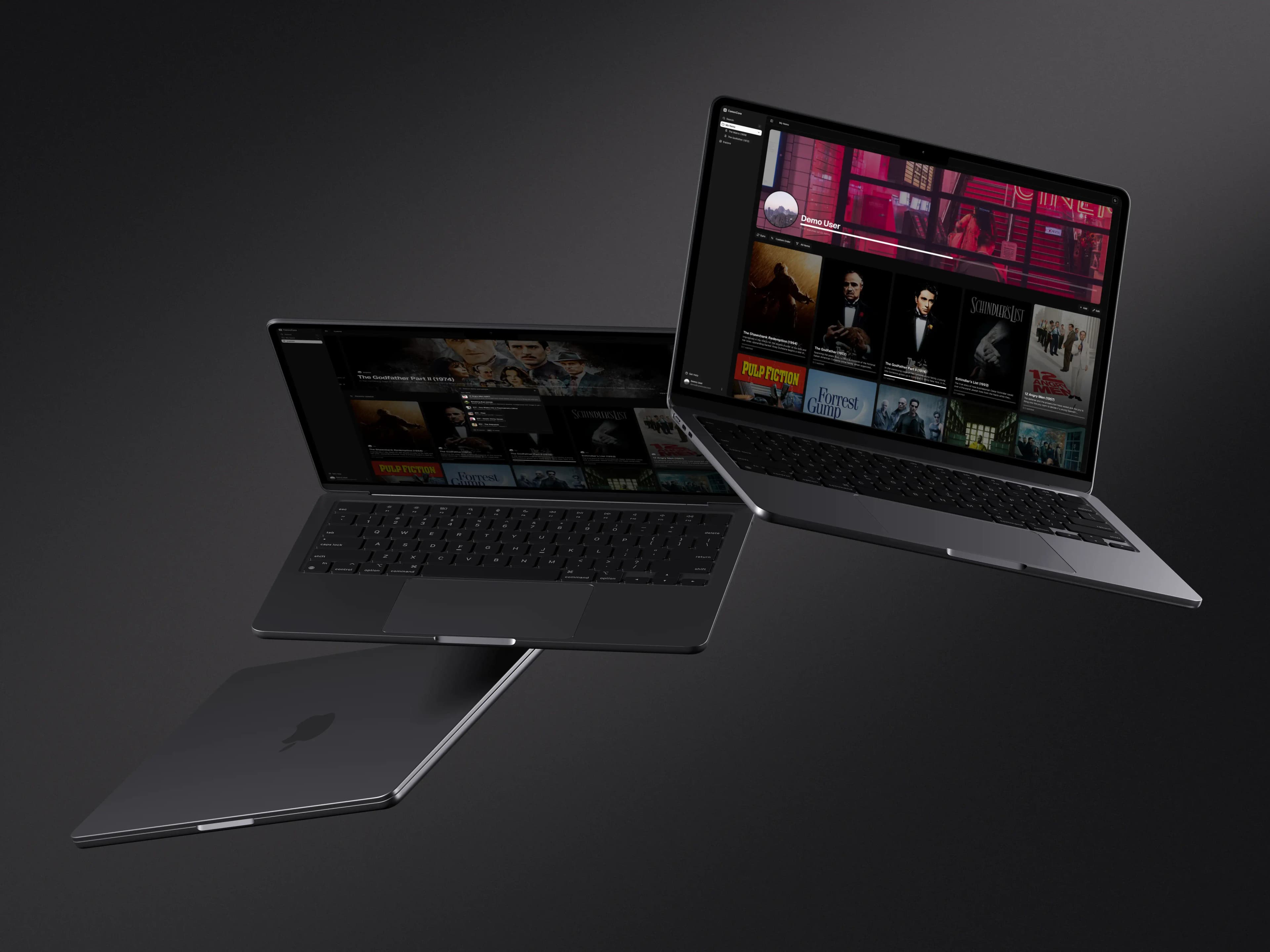

Library renders as Grid (Netflix-style poster cards with progress) or Tree (file-explorer view of all descendants at once). Each item carries a hero banner, plus an "Also appears in" panel showing every other collection the same canonical item lives in, and an ordered chronology view for container-kind parents. Nine typed relationships — adaptation, sequel, prequel, reference, crossover, novelisation, commentary, companion release, spin-off — connect items so a film and its novelisation don't have to live as the same record.
Drag-and-drop reorder and reparent works per-placement — moving a film inside "Sci-Fi" never affects its appearance in "Watched in 2025". The placement picker rejects cycles, self-placement, and duplicate parents in the UI before save, with a matching database-level constraint that holds even if a future mobile client writes directly.
Media playback
Video, audio, PDF, and EPUB all stream through a single authenticated media proxy that honours byte-range requests, so seeking in a two-hour film fetches one chunk instead of the whole file. Drive IDs, OAuth scopes, and raw URLs never reach the browser, and anonymous viewers get a generic 404 instead of an authentication redirect that would confirm a private file exists. First-byte latency holds under one second on cached source.

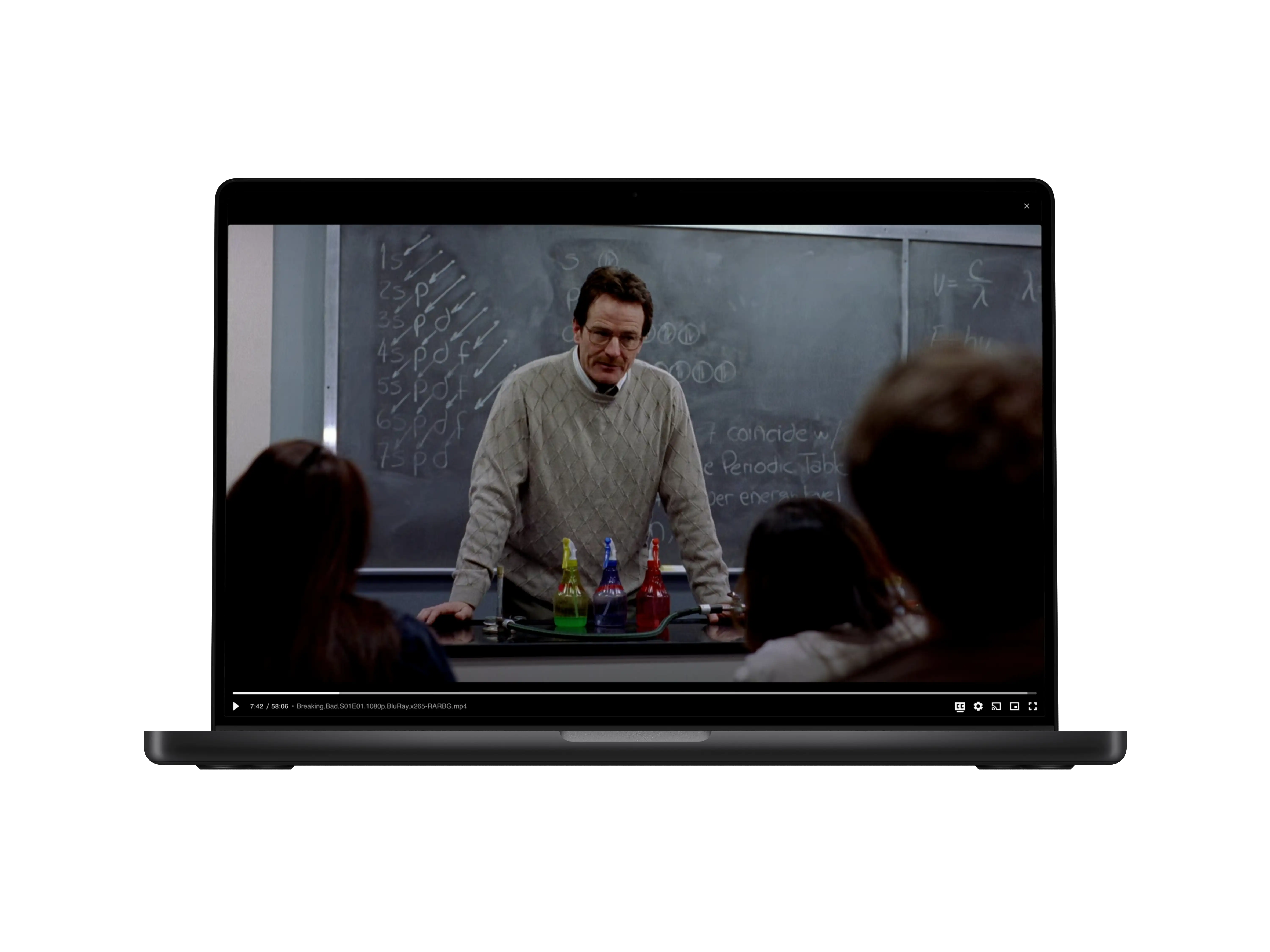

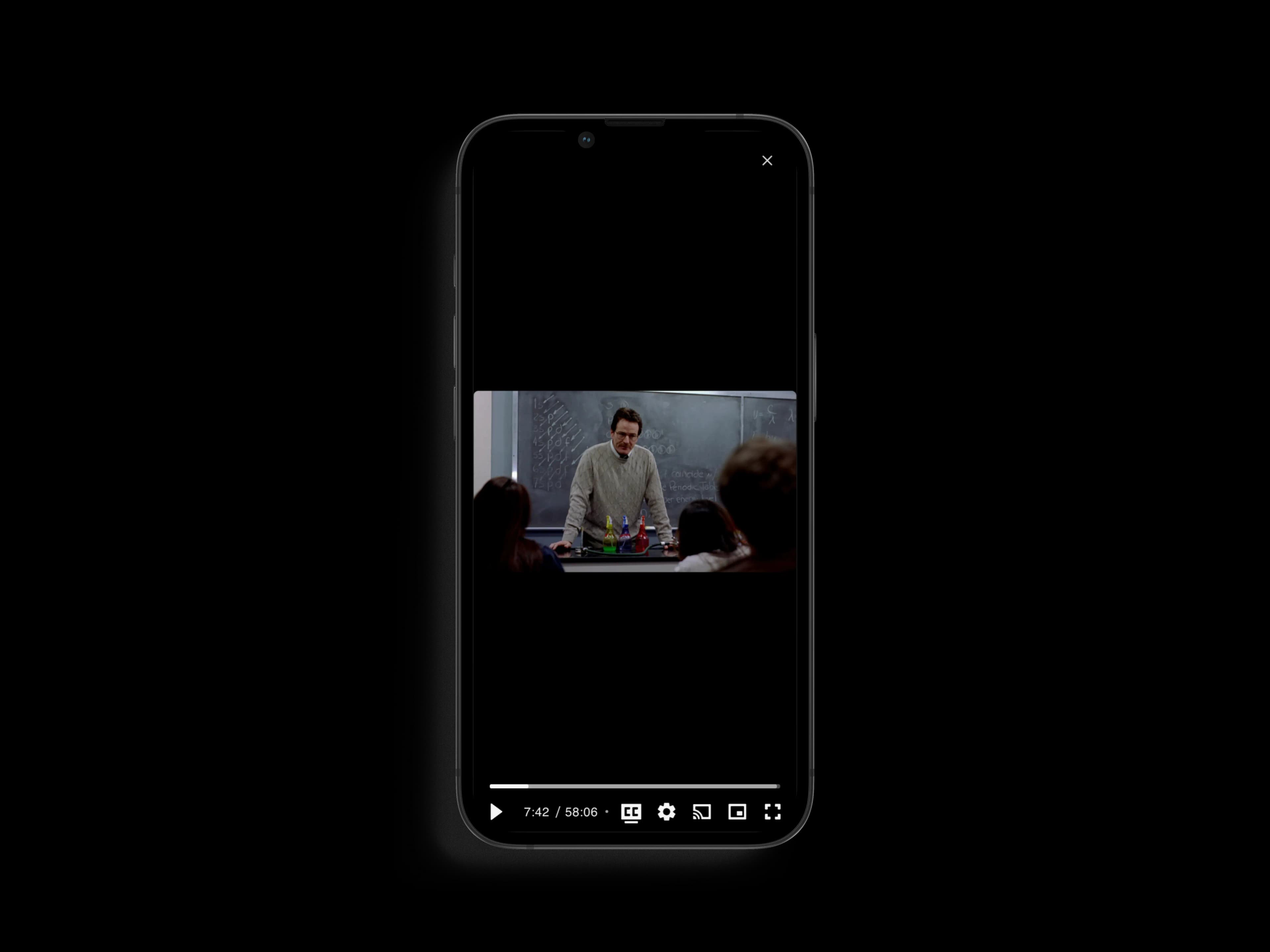

Video and audio play through the native HTML media APIs with timeline scrubbing, captions, and Media Session readiness — no heavy player library. PDFs render on PDF.js; EPUBs render on EPUB.js after spiking Readium and foliate-js. Progress is persisted per version, so resume always returns to the exact cut — extended, dubbed, or alternate master — you watched last.
Canonical metadata

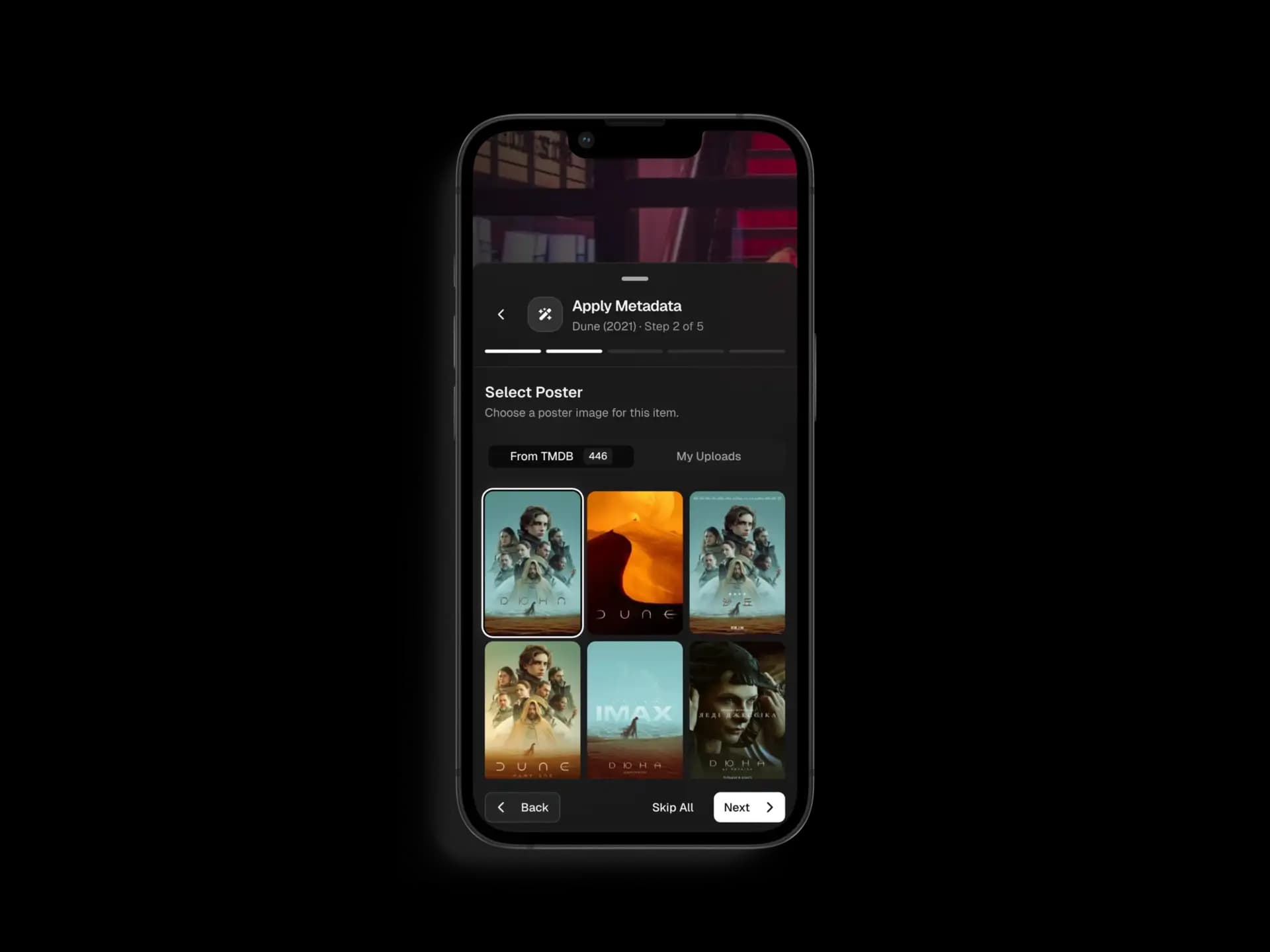

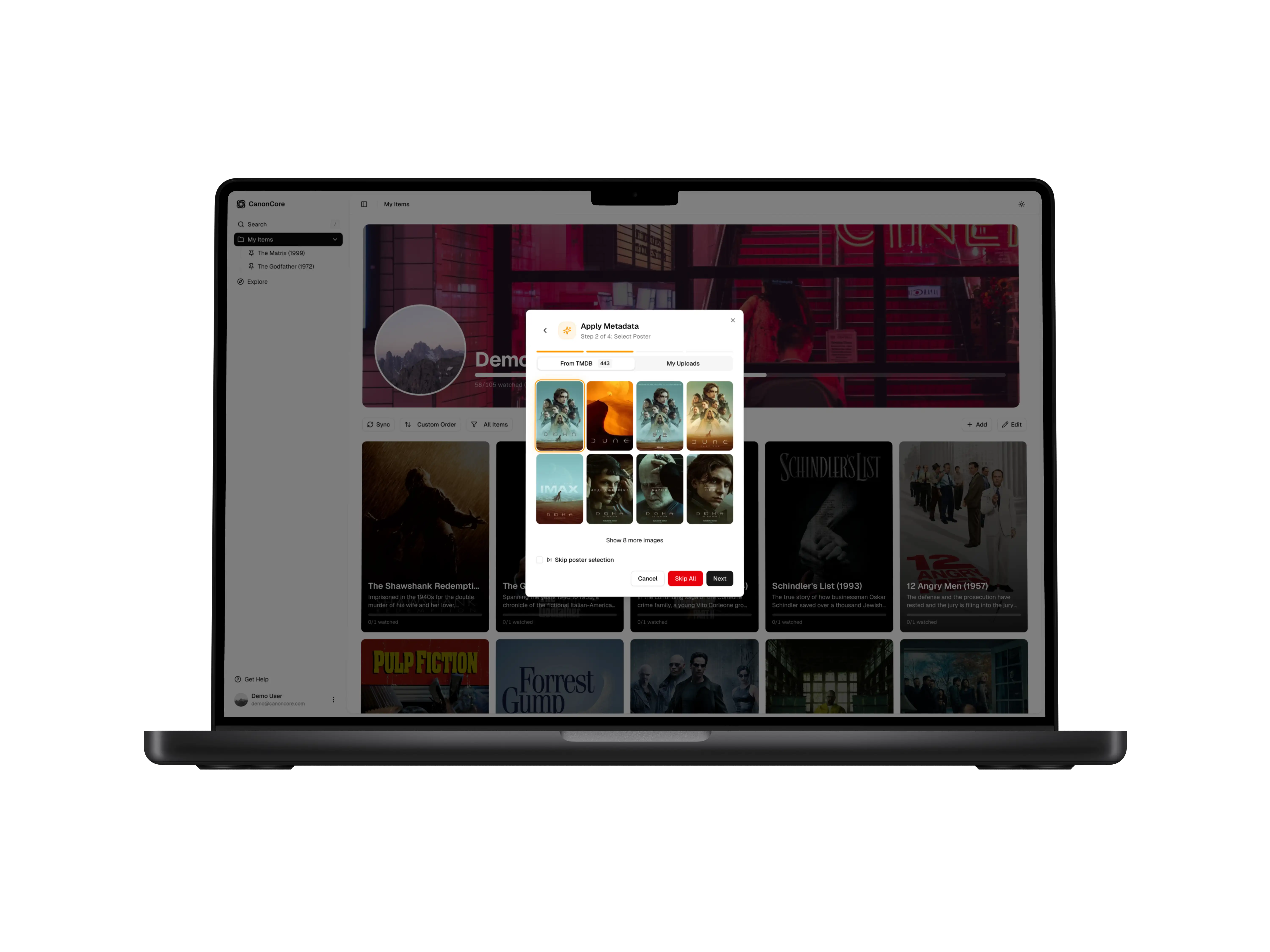

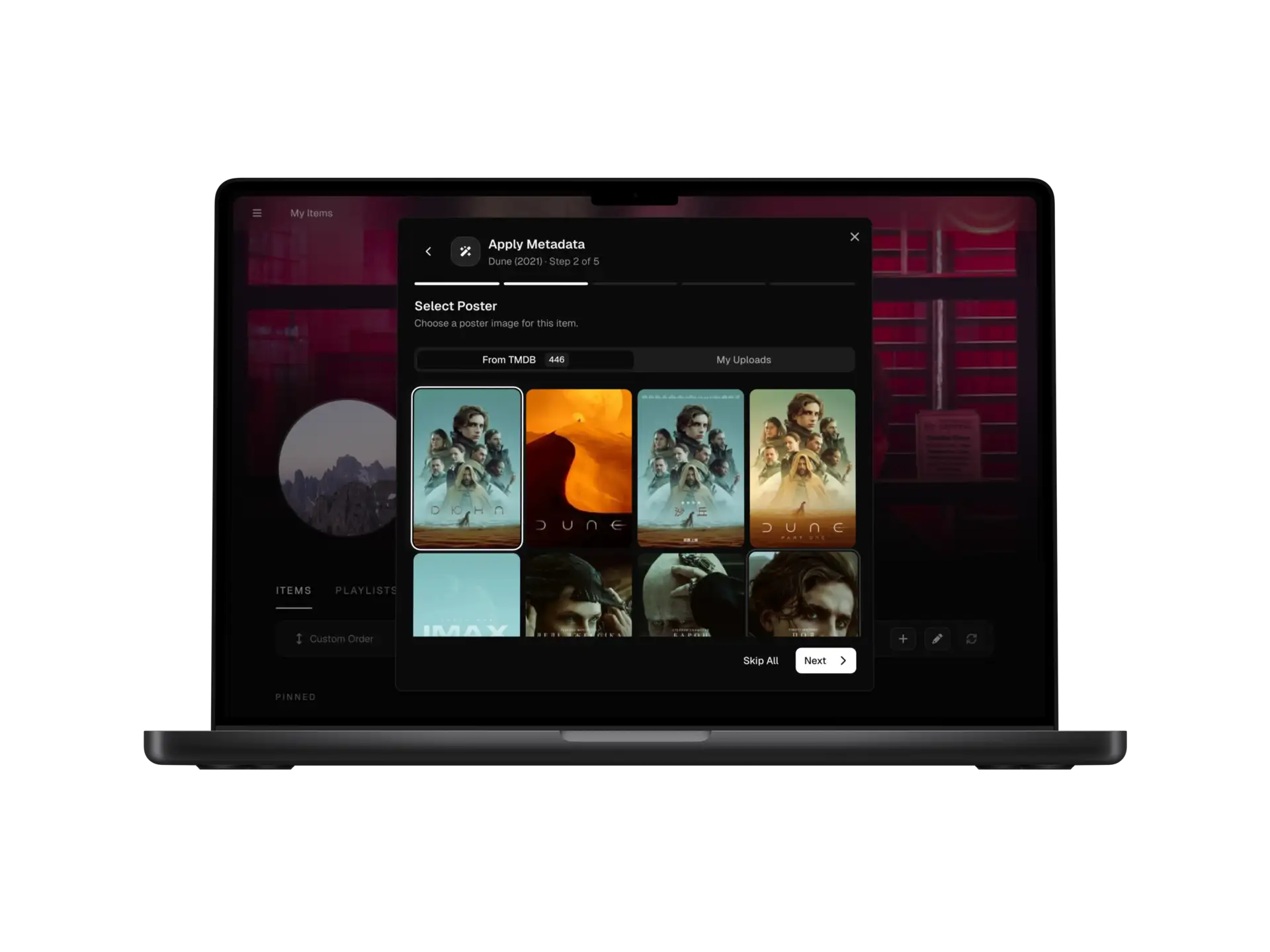

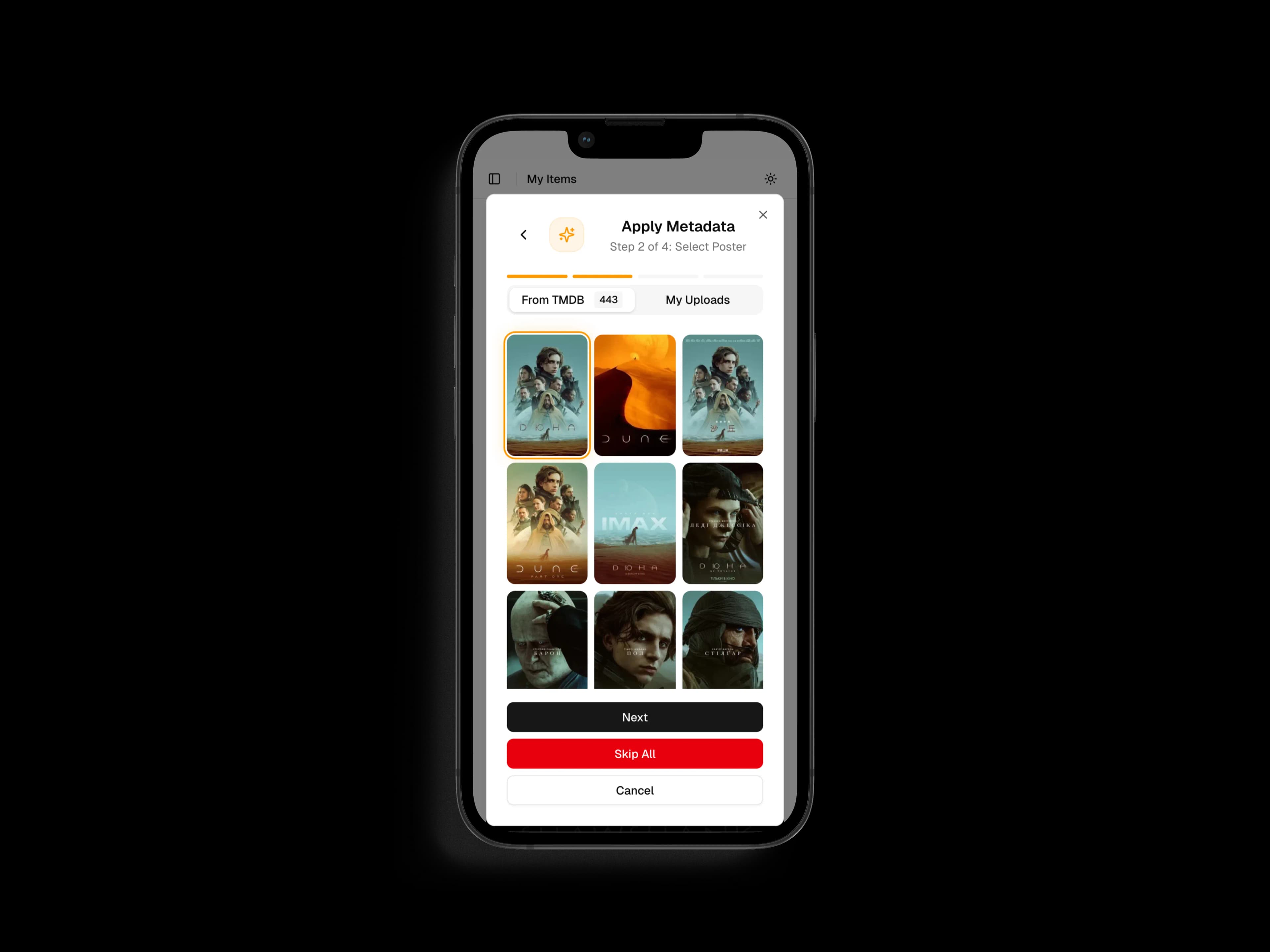

Every item carries the same canonical metadata shape whether it was enriched from a provider or filled in by hand. Three built-in adapters cover the common kinds: TMDB for video, Google Books for documents, MusicBrainz for audio. Suggested provider follows item kind; owners apply, keep, or skip each field individually.
Per-field provenance is tracked and surfaced as chips on the item detail — at a glance you can tell which fields came from a provider, which you typed yourself, and which the system derived. Re-enrichment never silently clears manual overrides; per-field delta states make the decision visible before commit. Custom providers can be added through Settings, with server-side token storage and strict request validation that rejects unknown fields at the boundary.

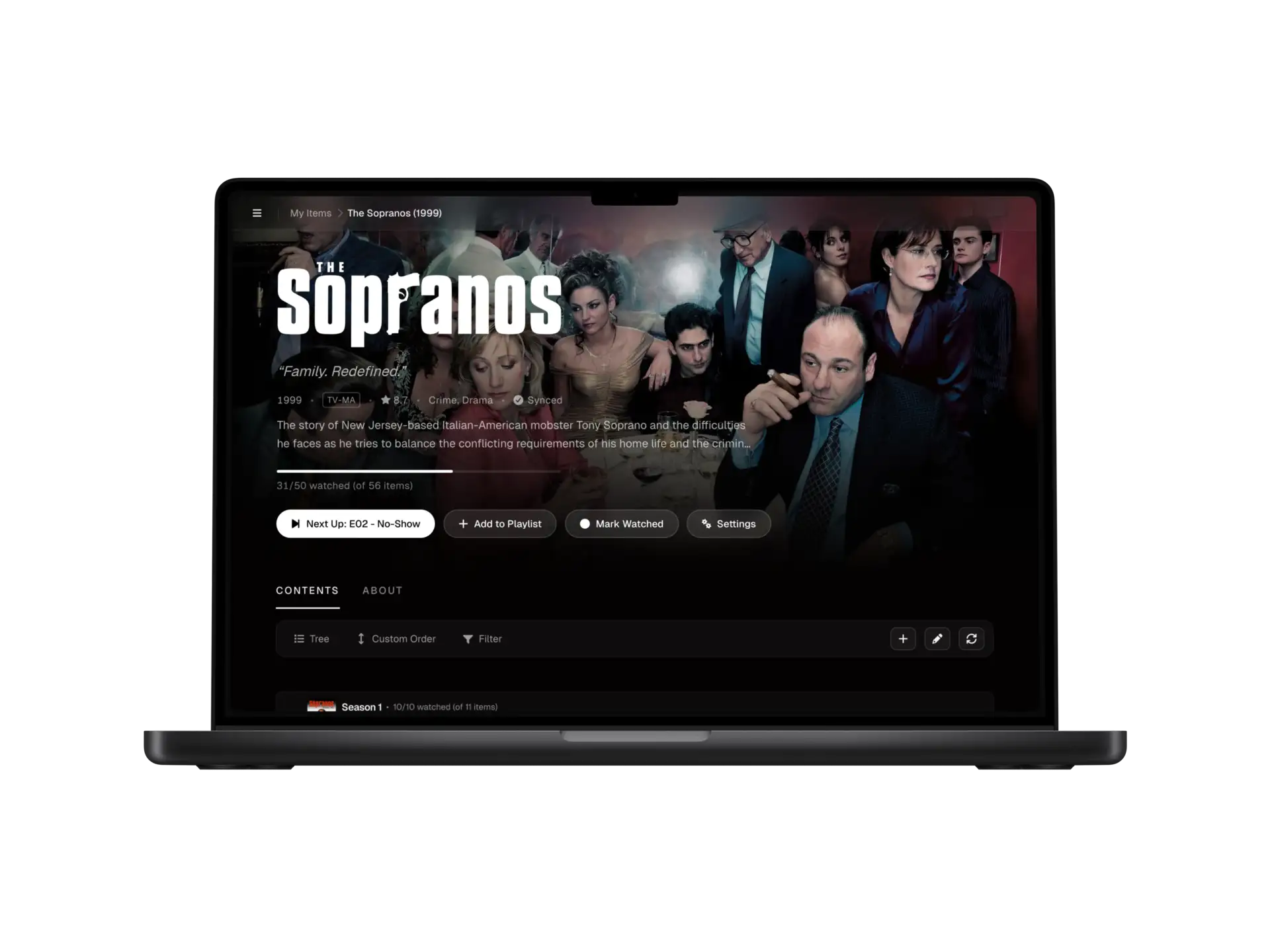

Google Drive sync

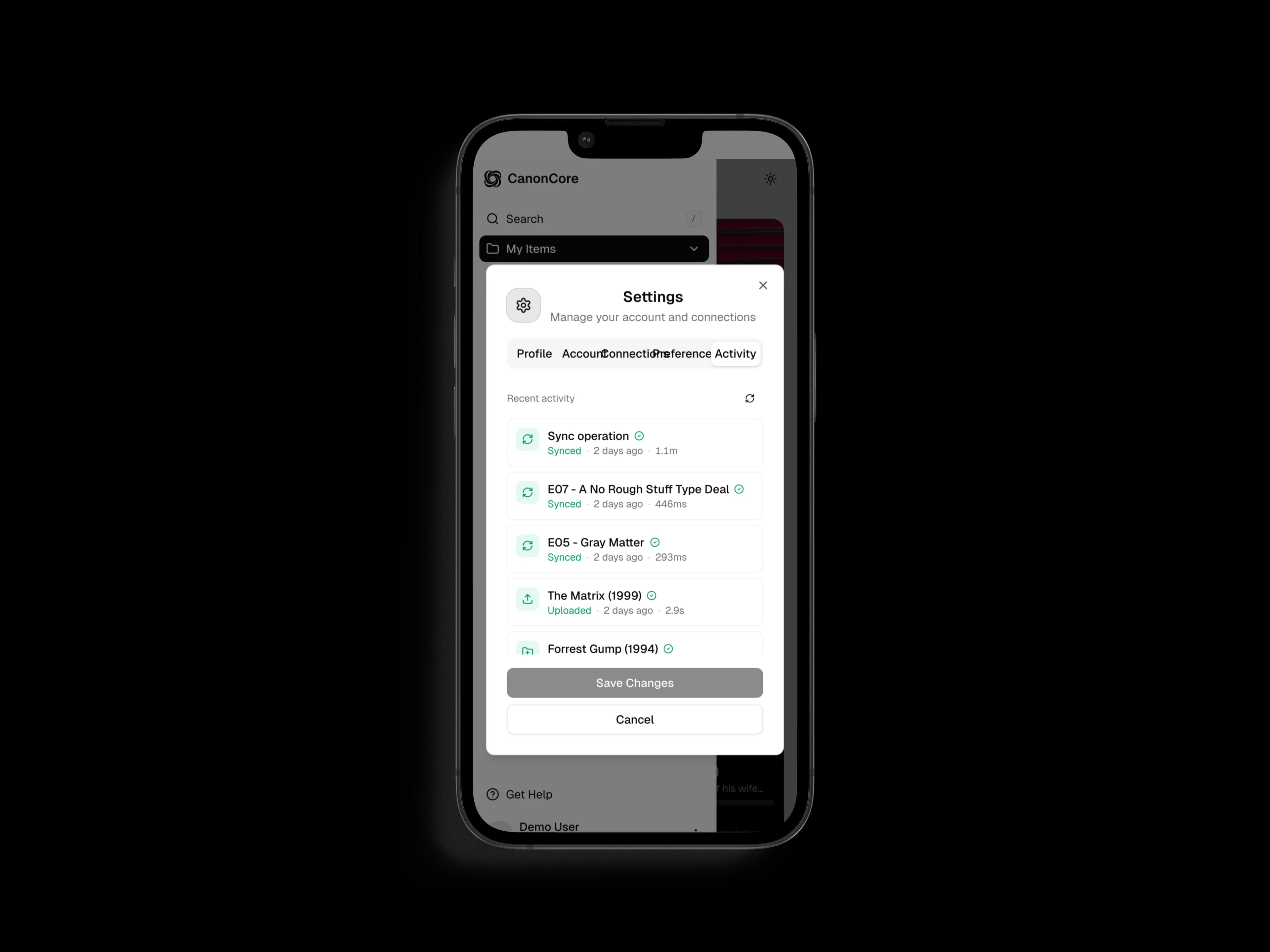

Files stay in your Drive. CanonCore connects through OAuth 2.0 with PKCE and per-file scope — only the files you hand over via the Google Picker are ever visible to the app. Refresh tokens are envelope-encrypted at rest. A managed CanonCore folder is created or reused as the bounded source scope, and the Storage settings surface the current connection state.
Change detection runs on a polling baseline over Vercel Cron, so correctness never depends on push delivery — push channels layer in as a latency optimisation when available. Exponential backoff on rate limits, repair-sync on token rejection, and a fallback path for Google-native Workspace types where the standard revision marker isn't populated.
Bidirectional writes — rename, move, trash — use idempotency keys so retries never double-write, with destructive-action confirmation on trash and no silent deletion in response to a Drive trash signal. Eleven of the twelve base operations are bidirectional under the per-file grant.
Public sharing
Three-state visibility — private, public, or inherit — applies to profiles, items, and entities. Effective visibility is computed per item-path: a direct "Public" flag never overrides a private ancestor, and "Inherit" resolves through any public-safe path while private paths stay invisible. A database trigger cascades the change to descendants for path-aware fan-out.
Before any public-making mutation, a mandatory payload preview shows three panels — what will be public, what won't be, and the counts that get withheld — with hard-blocker vs attention-warning severity. The server re-validates the whole decision before committing; stale previews are rejected with a refresh prompt rather than committing the wrong call.

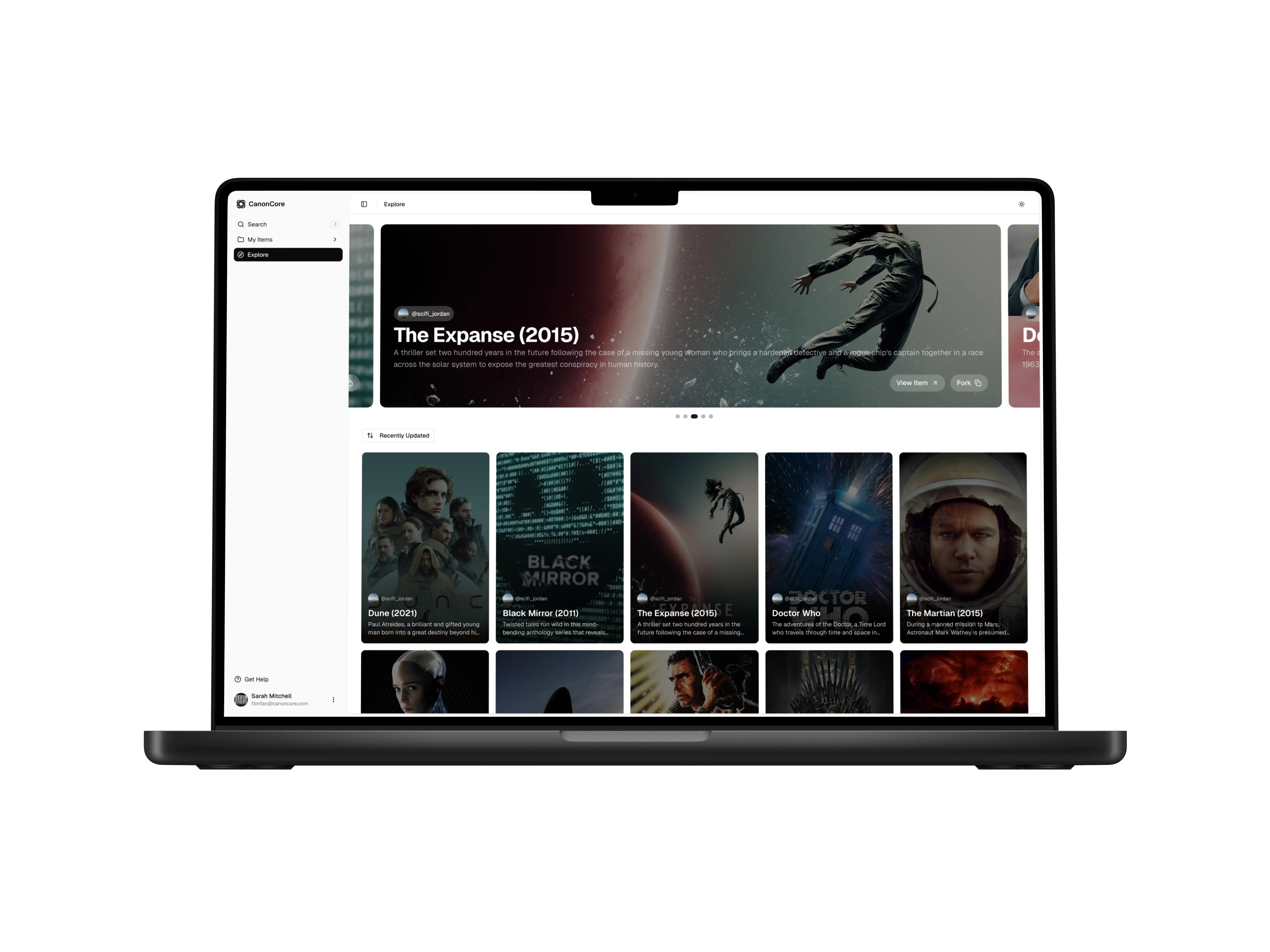

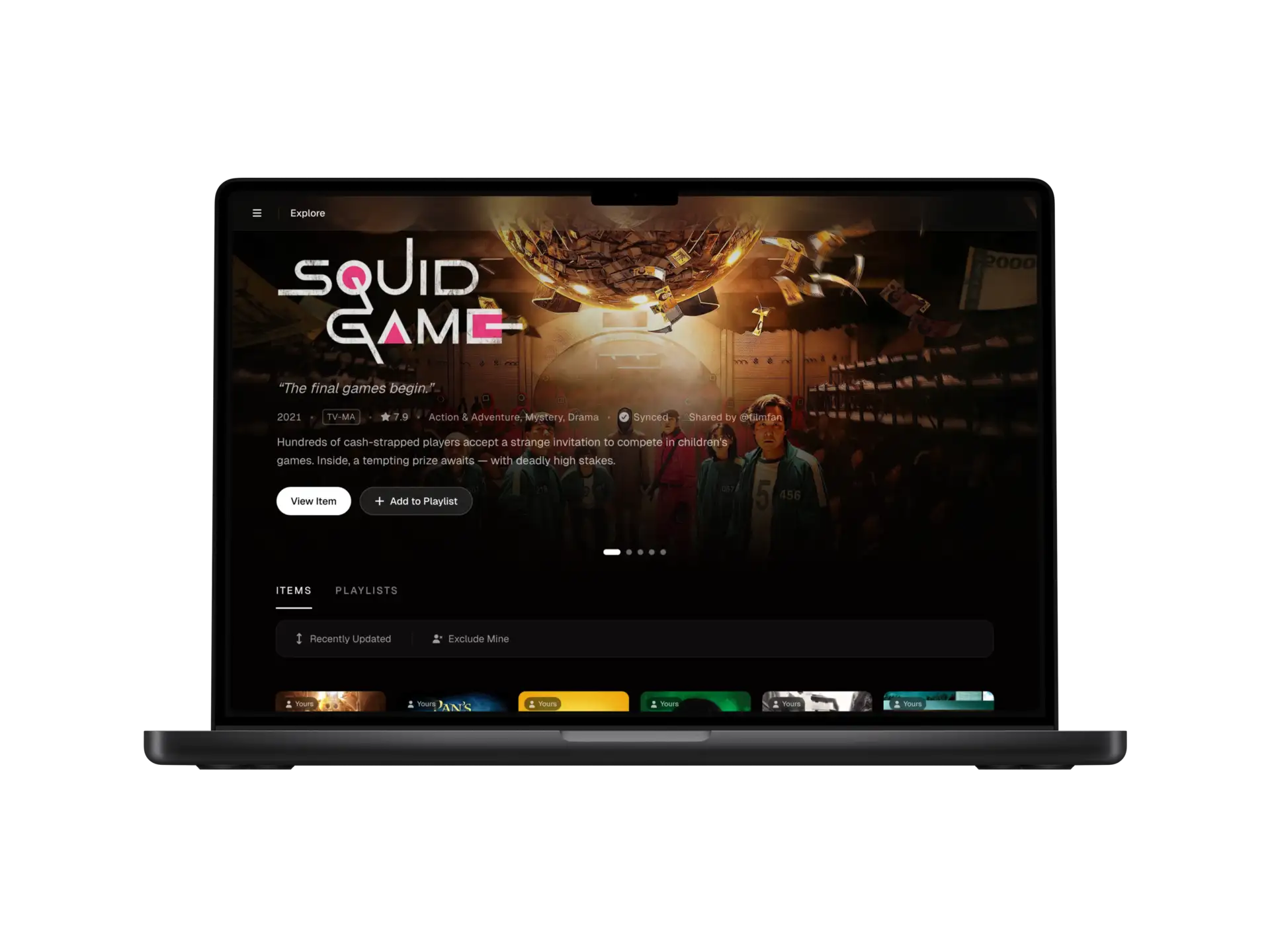

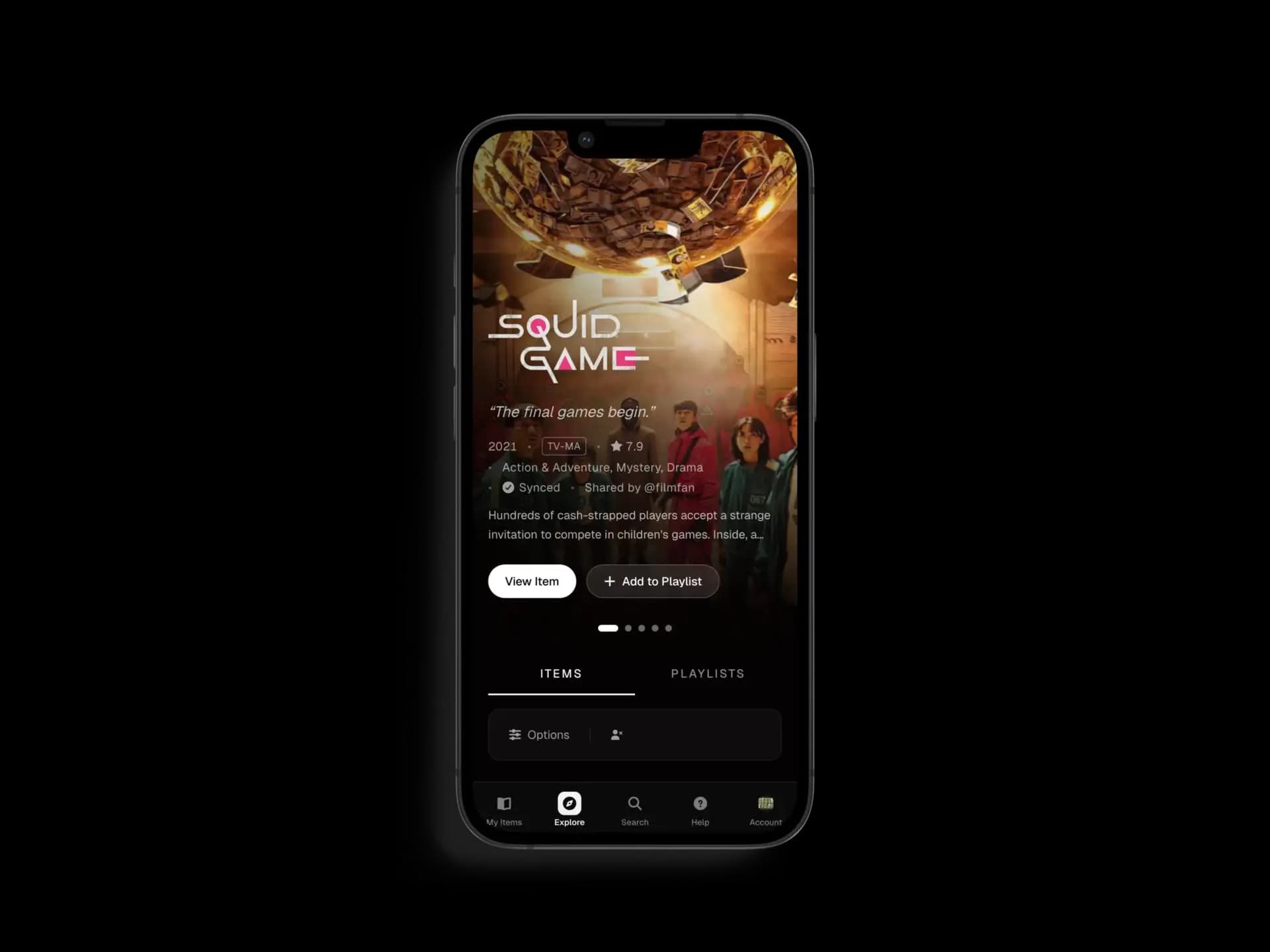

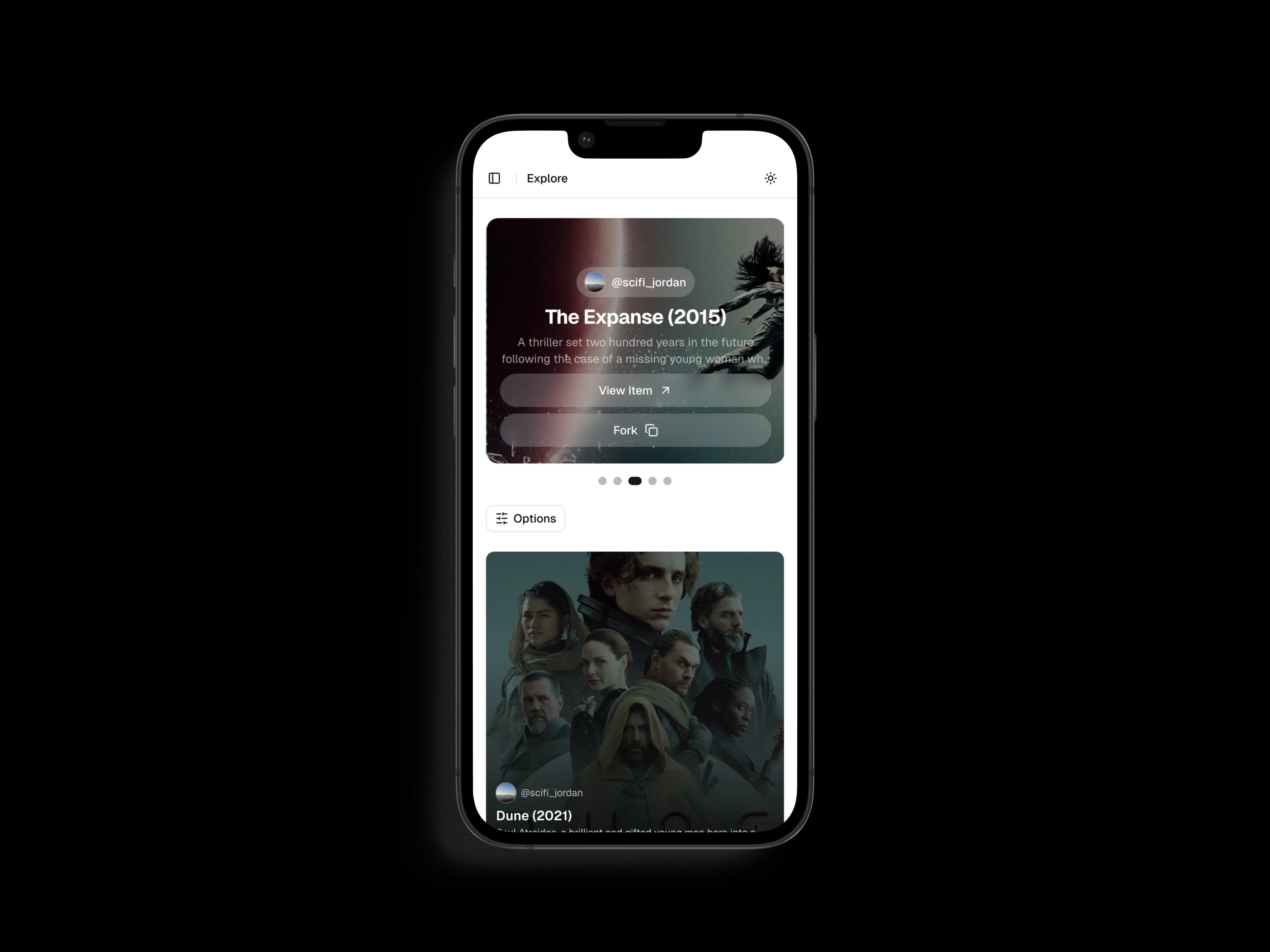

Four public routes ship — Explore, profile, public item, public entity. Signed-out and signed-in non-owner viewers see identical content; public surfaces never branch on whether someone has an account, and generic not-found semantics never reveal private existence. Public Explore holds TTFB under 200 ms and LCP under 2.5 s on simulated 4G with the initial JavaScript bundle under 150 KB compressed.
Command palette

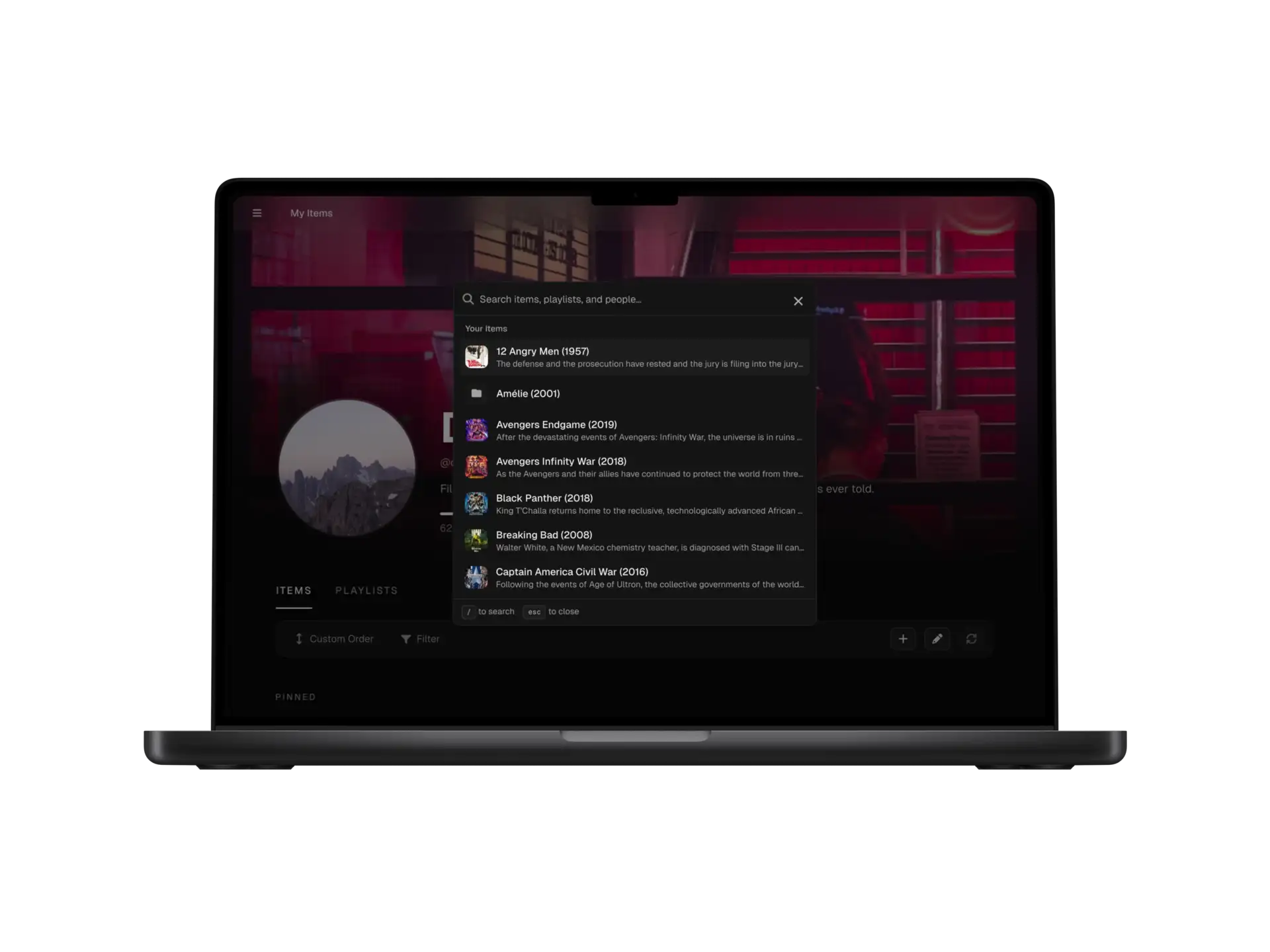

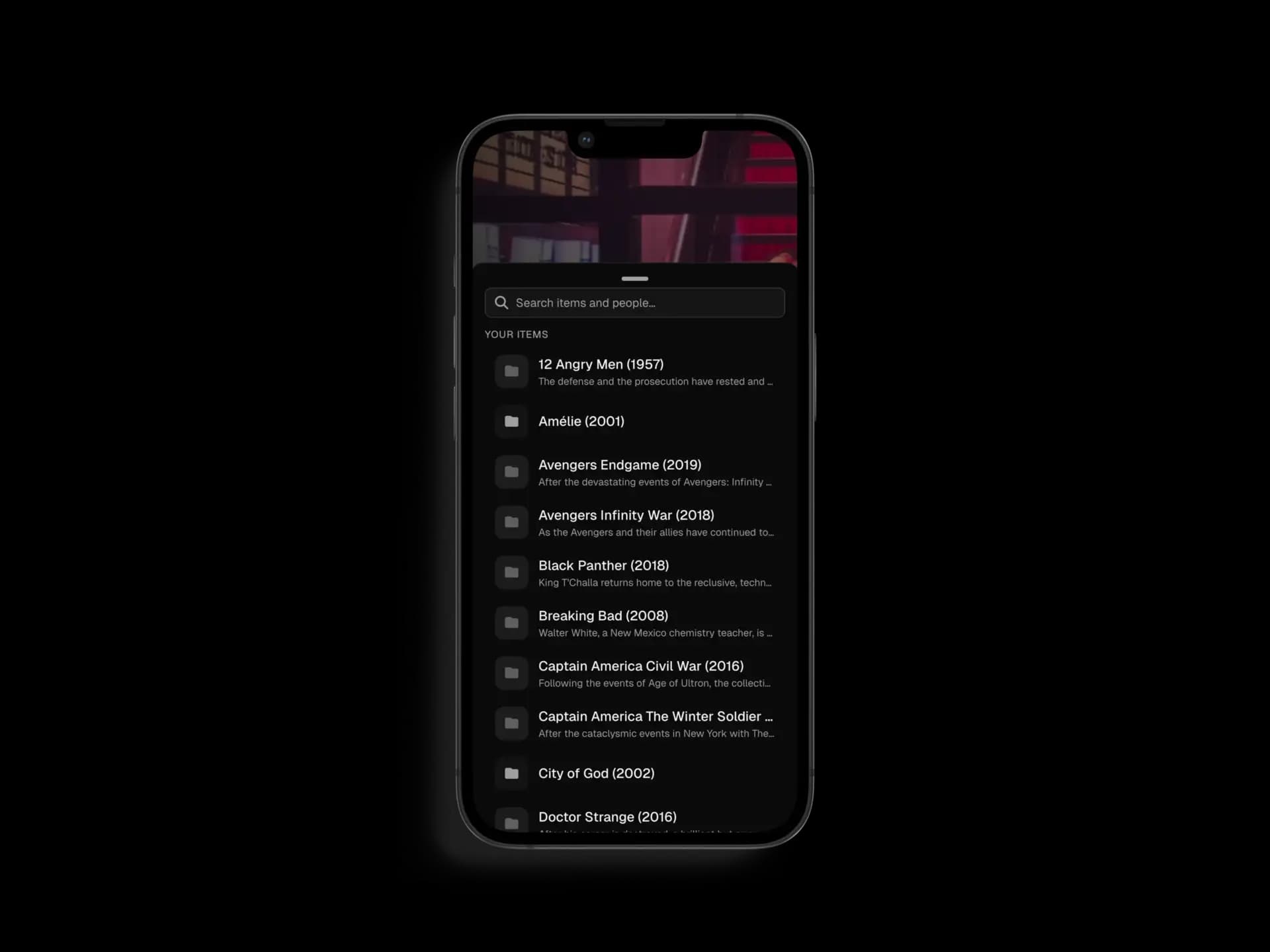

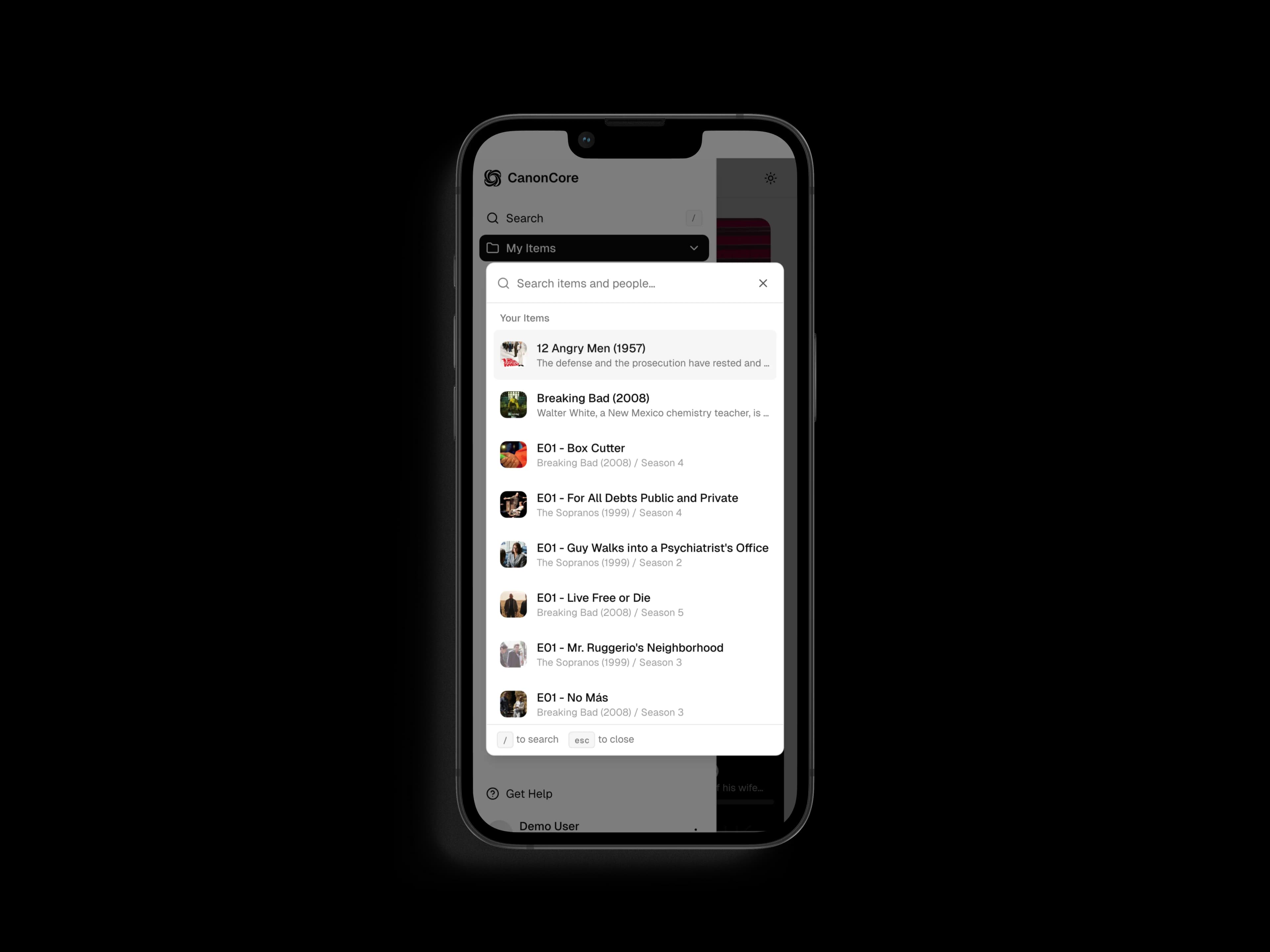

A global Raycast-style command palette opens via
⌘K on
desktop and a header search icon on mobile, with five filter categories
spanning items, entities, actions, and settings.
On public routes the palette searches public-shaped content only — the same component never leaks owner-only data depending on where it renders.
How it's built
Architecture decisions
Postgres DAG for placements. A personal media library is naturally a graph, not a tree — one canonical item (a film, a track, an episode) belongs in many collections. I modelled placement as a directed acyclic graph in Postgres because it lets cycle prevention live at the database boundary, not the application layer — which matters because the same data will eventually be written from a mobile client too. Reorder, reparent, and remove are safe per-placement: moving a film inside "Sci-Fi" doesn't touch its appearance in "Watched in 2025".
-- placements(item_id, parent_id) — each row places one item under another.
-- Cycle prevention runs in the database, so any client — web, mobile,
-- future API — gets the same guarantee at write time.
CREATE FUNCTION prevent_placement_cycles() RETURNS TRIGGER AS $$
BEGIN
IF NEW.parent_id IS NULL THEN
RETURN NEW;
END IF;
-- Walk up the item graph from the proposed parent. If the child
-- ever appears as an ancestor, the placement would form a cycle.
IF EXISTS (
WITH RECURSIVE ancestors(item_id) AS (
SELECT NEW.parent_id
UNION ALL
SELECT p.parent_id
FROM placements p
JOIN ancestors a ON p.item_id = a.item_id
WHERE p.parent_id IS NOT NULL
)
SELECT 1 FROM ancestors WHERE item_id = NEW.item_id
) THEN
RAISE EXCEPTION 'placement would create a cycle';
END IF;
RETURN NEW;
END;
$$ LANGUAGE plpgsql;
CREATE TRIGGER placements_no_cycles
BEFORE INSERT OR UPDATE ON placements
FOR EACH ROW EXECUTE FUNCTION prevent_placement_cycles();
Drive byte-range proxy, not direct links. Google's webContentLink URLs work — but they leak the file ID, the OAuth scope, and the user's auth context the moment they reach a browser. Streaming through a server-side proxy lets me hold the token server-side, sign nothing into the client, and return a clean 404 to anonymous viewers instead of an authentication redirect that would confirm a private file exists. The cost is one extra hop; the win is that no Drive identifier ever touches a browser.
Public DTOs as allow-lists, not filtered subsets. The instinct is to start with the internal type and remove the private fields. The problem is that every new column added to the internal type then has to be remembered as a "remove this from the public response" line — and one day someone forgets. I chose the opposite: the public DTOs are built from explicit allow-lists, and a strict-parse layer rejects unknown keys. Tests cover thirteen exclusion categories per public route — raw provider payloads, private ancestors, internal IDs, OAuth scopes, Drive identifiers, owner controls, withheld counts, and so on.
Activity as a single-table-inheritance schema. Around twenty-five source-neutral event types live in one table — typed columns for shared payload, a discriminator for the variant. A transactional helper guarantees each event commits atomically with the mutation that produced it, so the feed never shows a write that didn't happen. Per-type throttling keeps the feed legible: a progress save doesn't pollute it, and a re-enrichment isn't logged every keystroke.
Security
Drive refresh tokens are envelope-encrypted at rest, so a database compromise alone doesn't expose Drive access. Custom provider tokens are stored server-side only and are never echoed back to the client after save. Stack traces, raw OAuth errors, raw provider payloads, and raw Drive responses stay out of client-facing error UI — leaking those would help an attacker, not the user. OWASP security headers ship on every route. Sentry is configured with PII scrub rules to prevent token, source-identifier, owner-email, and Drive-resource-key leakage. Strict request validation rejects unknown keys at every trust boundary. Row-level security backs every owner-scoped table at the database, not just the application.
Performance and accessibility
Public Explore scores 96 on Lighthouse Performance in production. The budget is bought through caching strategy and bundle discipline — not edge runtime, not SSG-everywhere, not third-party CDN. Public surfaces hit all three Core Web Vitals in the "good" band: LCP under 2.5 s, INP under 200 ms, CLS under 0.1, with TTFB under 200 ms on simulated 4G and the initial JavaScript bundle under 150 KB compressed. Authenticated pages hold TTFB under 500 ms and LCP under 3 s on a warm session. A typical mutation completes in under 800 ms server time end-to-end. Long-running flows are stale-state aware: a preview that's gone stale gets rejected with a refresh prompt rather than committing the wrong decision.
Accessibility holds at WCAG 2.2 AA throughout (backwards-compatible with the WCAG 2.1 AA most policies still reference). Every interactive control is keyboard reachable with visible focus and no traps; icon-only controls have accessible names; state is carried by text or icon alongside any colour treatment. Touch targets hold the 44×44 minimum — well above WCAG 2.2's 24×24 floor. The PDF and EPUB viewers are keyboard- and touch-navigable, captions render when sources provide them, autoplay-with-sound is blocked, and reduced-motion is respected across all transitions. Per-item playback progress writes go through both a rate-limited Server Action and a beacon Route Handler — sendBeacon, not beforeunload — so progress survives a tab close. The UI never claims "Saved" on a write that didn't persist.
Testing and operations
Vitest for unit, PGlite-backed Postgres for integration (no mocks at the data layer — RLS factories test the real policies), Playwright for end-to-end on Chromium locally and Chromium + Firefox in CI. Negative tests are written explicitly across the public/private, provider, Drive, upload, and auth boundaries. Storybook covers state, responsive, dark-mode, failure, loading, and accessibility variants.
GitHub Actions runs a quality gate per push — lint, type check, dependency check, locale parity check — then unit + integration + E2E tests. Conventional Commits with allowed types; named exports throughout (defaults reserved for Next.js pages); TypeScript end-to-end, with Zod narrowing preferred over casts. Sentry environment + release tagging makes error frequency by release queryable. Every user-visible string routes through next-intl on both server and client; locale-aware metadata is generated server-side from public-safe DTOs only.
Full stack
Front end: Next.js 16 (App Router), React 19, TypeScript, Tailwind CSS 4, shadcn/ui, next-intl, dnd-kit, cmdk, PDF.js, EPUB.js
Back end: PostgreSQL with row-level security, Drizzle ORM, Clerk for auth, Server Actions and Route Handlers, Zod for validation
APIs and integrations: Google Drive (OAuth 2.0 with PKCE, per-file scope, polling + push change detection), TMDB, Google Books, MusicBrainz, and custom providers
Infrastructure: Vercel (App Router + Cron), PostgreSQL, Sentry, GitHub Actions CI/CD
Testing: Vitest (unit), PGlite (integration against real Postgres), Playwright (end-to-end), Storybook with the a11y addon
Mobile (in progress): React Native and Expo, sharing the same data layer, auth, and byte-range media proxy as the web app
